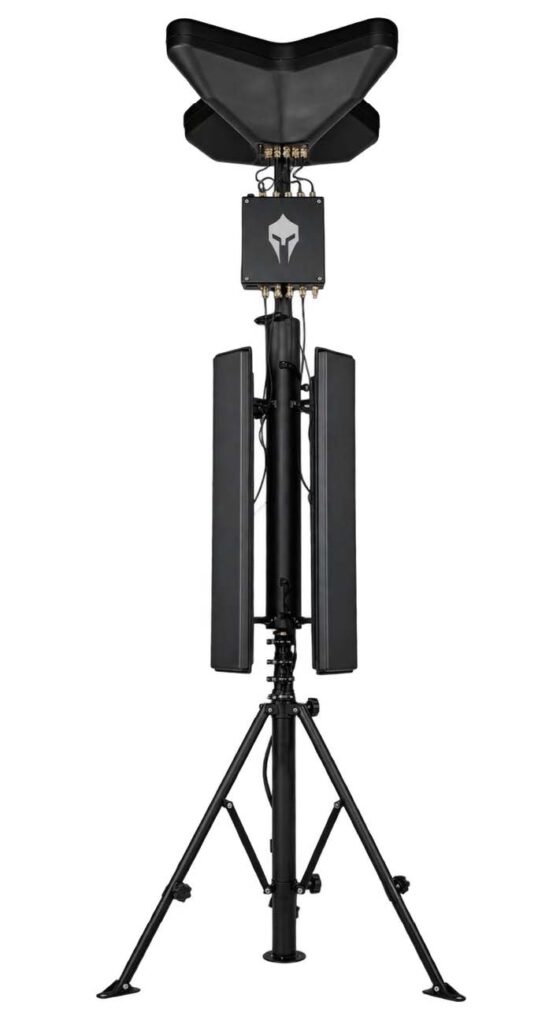

KVERTUS MS AZIMUTH
TECHNICAL SPECIFICATIONS
A signals intelligence (SIGINT) system designed to detect the full spectrum of radio emitters, including UAVs and their Ground Control Stations (GCS), repeaters, EW assets, radars, and telecommunication systems. Analyzes the signal, determines target bearing, and intercepts the video channel from the UAV. Invisible to enemy radio reconnaissance.
Unique to the Ukrainian market, this system rivals the functionality of solutions from global leaders such as Aaronia, TCI, and Rohde & Schwarz, while offering a significantly more competitive price point.
| Operating frequency range | 30–6000 MHz |
| Instantaneous bandwidth | 200 MHz |
| Frequency scanning speed | 540 GHz/s |
| Frequency resolution | 30 kHz |
| Single–signal dynamic range | ≥80 dB |
| Maximum detection range | up to 150 km |
| Minimum bearing time | 0.04 ms |
| Bearing accuracy | ≤5° (RMS) |
| Vertical coverage | 60° |
| Horizontal coverage | 360° |
| Polarization | vertical |
| Signal processing | digital |
| Simultaneously tracked targets | ≤100 |
| Target detection | automatic |
| Serviceability monitoring | automatic |
| Fault detection | semi-automatic, with accuracy down to a replacement module |
| Interface | Ethernet |
| Power consumption | 100 W (220 V, 50 Hz) |
| Operating temperature | –20 °С to +40 °С |
| Weight (without the antenna feeder system) | up to 25 kg |
